Multiple DataBase Connection and Data shifting using Spring boot API configuration Example.

      Create Spring Boot Java (Microservices).

Select the technologies and library(Maven Dependency ) to be.

iReport
iReport is a powerful graphical design tool for report designers and power users to define reports for execution using the JasperReports engine. Whether you are using the JasperReports library by itself as a critical component of your application or you are using it as a component of the JasperReports Server application, iReport can help you design reports to meet the most complex reporting demands. iReport is built on the NetBeans platform and is available as a standalone application or as a Netbeans plug-in.
Requirements For current Download JasperReports iReport Tools , Ckeck It is recommended that you run iReport with JDK v1.5,v1.6 or v1.7. Note that for Windows Vista users, it is recommended that you run JDK v1.7.

Create Spring Boot Java (Microservices).

Select the technologies and library(Maven Dependency ) to be.

For step by step development working watch the video and learn yourself. Download wampServer2.0i and install then run it.

In src/main/resources/reports/report.jrxml folder, create new folder named reports. In this folder, create new Jasper Report named report.jrxml as below:



Single sign-on is an authentication scheme that allows a user to log in with a single ID to any of several related, independent, software systems or web applications. In this Video user will login through Outlook and Google Mail for which we will develop Spring Boot Microservices Project here and will also use some Spring Boot Jar files javax.mail.jar and SendMailA143mkSSO.jar.

There are some parameters in five methods, which we initialize by creating and object like this.

How to create a project to follow us. Project Name is: EmailAuthenticationA143mk

For step by step development working watch the video and learn yourself.

  Download Projects

Some Helping Note: Some code and video are shown in this post, how we can use it in our application, the developer and jar file used in this is verified by mail id and password and after mail id is successful is returned, you can then write custom user roles and method entities in the block. and you can write error body in second part of it.

First of all you have to take auth2 access to the social web site, we see it in the video, then we will create a services and test it and see some services we learned in the previous post, we will give their link below which includes Eureka (client-1, client-2), ApiGetway, services.

Add client and secret Id in ApiGetway application.properties  file:

Add New Package in ApiGetway-> com.javatechie.spring.zulu.api.cofig and create SecurityConfiguration.java file.
package com.javatechie.spring.zulu.api.cofig; import org.springframework.context.annotation.Configuration; import org.springframework.security.config.annotation.authentication.configuration.EnableGlobalAuthentication; import org.springframework.security.config.annotation.web.builders.HttpSecurity; import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity; import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter; @Configuration @EnableWebSecurity @EnableGlobalAuthentication public class SecurityConfiguration extends WebSecurityConfigurerAdapter { @Override protected void configure(HttpSecurity http) throws Exception { http.csrf().disable().antMatcher("/**").authorizeRequests() .antMatchers("/cli-api/**","/cli2-api/**").authenticated() .anyRequest().authenticated() .and() .oauth2Login().permitAll() .and() .logout() .invalidateHttpSession(true) .clearAuthentication(true) .logoutSuccessUrl("/"); } }

See the video step by step to run/learn past post video and current configuration post.

Introduction
Log4j is designed for both beginners and professionals. Our blogs post provides all the basic and advanced concepts of Log4j, such as Log4j for logging configuration and implementation etc. Log4j is a fast, reliable and flexible logging framework which is written in java. It is an open-source logging API for java. Simply the logging means some way to indicate the state of the system at runtime. Logs are used to capture and persists the important data and make it available for analysis at any point in time. Log4j2 is broken up in an API and an implementation (core), where the API provides the interface that applications should code to. Strictly speaking Log4j core is only needed at runtime and not at compile time. However, below we list Log4j as a compile time dependency to improve the startup time for custom plugins as it provides an annotation processor that generates a metadata file to cache plugin information as well as the necessary code to compile against to create custom plugins. .

Using Log4j in your Apache Maven build To build with Apache Maven, add the dependencies listed below to your pom.xml file.

<dependency> <groupId>org.apache.logging.log4j</groupId> <artifactId>log4j-api</artifactId> <version>2.17.2</version><!--$NO-MVN-MAN-VER$ --> </dependency> <dependency> <groupId>org.apache.logging.log4j</groupId> <artifactId>log4j-core</artifactId> <version>2.17.2</version><!--$NO-MVN-MAN-VER$ --> </dependency>

To keep your Log4j module versions in sync with each other, a pom.xml file is provided for your convenience. To use this with Maven, add the dependency listed below to your pom.xml file. When you specify the version identifier in this section, you don't have to specify the version in your section. pom.xml

<dependencyManagement> <dependencies> <dependency> <groupId>org.apache.logging.log4j</groupId> <artifactId>log4j-bom</artifactId> <version>2.17.2</version> <scope>import</scope> <type>pom</type> </dependency> </dependencies> </dependencyManagement>

Write a configuration of application.properties

########Server Port ###### server.port=8081 #### LOGE FILE BLOCK##### logging.level.org.springframework.web=INFO logging.level.guru.springframework.controllers=DEBUG logging.level.org.hibernate=ERROR logging.file=logs/spring-boot-logging.log

As the file Path is given in the application.properties file, you have to create a folder named logs inside the project with the same name, you can also change its name. you will get to see all this in the video.

Go to The Live Example Video

Information
As you must have seen in these blogs links Multiple Microservices with Eureka Client Configuration that how we develop microservices and register those services on eureka server and we have seen how every service run on different port Number.
Introduction
Zuul is a JVM- based router and server-side load balance form Netflix.
Zuul's rule engine provides flexibility to write rules and filters to enhance routing in a spring cloud microservices architecture.
Routing it is an integral port of a microservice architecture.
How to Include Zuul Dependency
Enbedded Zuul Reverse Proxy To enable it, annotate a spring boot man class with @EnableZuulProxy.
How to write Main Class Name is:A143mkGatewayApplication.java
package com.javatechie.spring.zulu.api; import org.springframework.boot.SpringApplication; import org.springframework.boot.autoconfigure.SpringBootApplication; import org.springframework.cloud.client.discovery.EnableDiscoveryClient; import org.springframework.cloud.netflix.zuul.EnableZuulProxy; @SpringBootApplication @EnableZuulProxy @EnableDiscoveryClient public class A143mkGatewayApplication { public static void main(String[] args) { SpringApplication.run(A143mkGatewayApplication.class, args); } }
Filter Class
Base abstract class for Zuulfilters. the base class defines abstract methods to define: filterType()- to classify a filter by type. standard type in Zuul are

1. ErrorFilter
2. PostFilter
3. PreFilter
4. RouteFilter

ErrorFilter.java
package com.javatechie.spring.zulu.api.filter; import javax.servlet.http.HttpServletResponse; import org.slf4j.Logger; import org.slf4j.LoggerFactory; import org.springframework.stereotype.Component; import com.netflix.zuul.ZuulFilter; import com.netflix.zuul.context.RequestContext; @Component public class ErrorFilter extends ZuulFilter { private static Logger log = LoggerFactory.getLogger(PostFilter.class); @Override public String filterType() { return "error"; } @Override public int filterOrder() { return 1; } @Override public boolean shouldFilter() { return true; } @Override public Object run() { HttpServletResponse response = RequestContext.getCurrentContext().getResponse(); log.info("ErrorFilter: " + String.format("response status is %d", response.getStatus())); return null; } }
PostFilter.java
package com.javatechie.spring.zulu.api.filter; import javax.servlet.http.HttpServletResponse; import org.slf4j.Logger; import org.slf4j.LoggerFactory; import org.springframework.stereotype.Component; import com.netflix.zuul.ZuulFilter; import com.netflix.zuul.context.RequestContext; @Component public class PostFilter extends ZuulFilter { private static Logger log = LoggerFactory.getLogger(PostFilter.class); @Override public String filterType() { return "post"; } @Override public int filterOrder() { return 1; } @Override public boolean shouldFilter() { return true; } @Override public Object run() { HttpServletResponse response = RequestContext.getCurrentContext().getResponse(); log.info("PostFilter: " + String.format("response's content type is %s", response.getStatus())); return null; } }
PreFilter.java
package com.javatechie.spring.zulu.api.filter; import javax.servlet.http.HttpServletRequest; import org.slf4j.Logger; import org.slf4j.LoggerFactory; import org.springframework.stereotype.Component; import com.netflix.zuul.ZuulFilter; import com.netflix.zuul.context.RequestContext; @Component public class PreFilter extends ZuulFilter { private static Logger log = LoggerFactory.getLogger(PreFilter.class); @Override public String filterType() { return "pre"; } @Override public int filterOrder() { return 1; } @Override public boolean shouldFilter() { return true; } @Override public Object run() { RequestContext ctx = RequestContext.getCurrentContext(); HttpServletRequest request = ctx.getRequest(); log.info("PreFilter: " + String.format("%s request to %s", request.getMethod(), request.getRequestURL().toString())); return null; } }
RouteFilter.java
package com.javatechie.spring.zulu.api.filter; import javax.servlet.http.HttpServletRequest; import org.slf4j.Logger; import org.slf4j.LoggerFactory; import org.springframework.stereotype.Component; import com.netflix.zuul.ZuulFilter; import com.netflix.zuul.context.RequestContext; @Component public class RouteFilter extends ZuulFilter { private static Logger log = LoggerFactory.getLogger(RouteFilter.class); @Override public String filterType() { return "route"; } @Override public int filterOrder() { return 1; } @Override public boolean shouldFilter() { return true; } @Override public Object run() { RequestContext ctx = RequestContext.getCurrentContext(); HttpServletRequest request = ctx.getRequest(); log.info("RouteFilter: " + String.format("%s request to %s", request.getMethod(), request.getRequestURL().toString())); return null; } }
application.properties

Create pom.xml
<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <groupId>com.example</groupId> <artifactId>a143mk-gateway</artifactId> <version>0.0.1-SNAPSHOT</version> <packaging>jar</packaging> <name>a143mk-gateway</name> <description>API Gateway using zulu proxy</description> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>2.0.6.RELEASE</version> <relativePath/> <!-- lookup parent from repository --> </parent> <properties> <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding> <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding> <java.version>1.8</java.version> <spring-cloud.version>Finchley.SR1</spring-cloud.version> </properties> <dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-netflix-zuul</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-devtools</artifactId> <scope>runtime</scope> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> </dependency> </dependencies> <dependencyManagement> <dependencies> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-dependencies</artifactId> <version>${spring-cloud.version}</version> <type>pom</type> <scope>import</scope> </dependency> </dependencies> </dependencyManagement> <build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> </plugin> </plugins> </build> </project>

Eureka Server is an application that holds the information about all client-service applications. Every Micro service will register into the Eureka server and Eureka server knows all the client applications running on each port and IP address. Eureka Server is also known as Discovery Server.



How to Building a Eureka Server

Create Eureka Server: Project Name is ureka-server
Create ServletInitializer.java class and extends SpringBootServletInitializer

Check Main Class is Name of UrekaServerApplication to add Annotations

Create application.properties

Create pom.xml

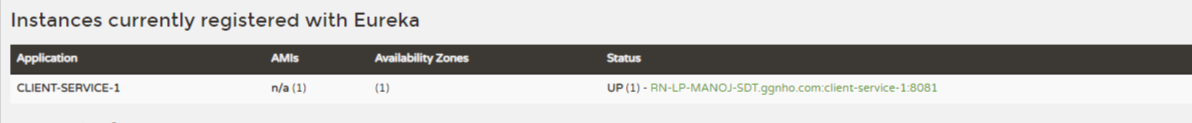

Write Click to Project Node and Run as Spring Boot App Output check on Browser to write URL http://localhost:8761/

How to Building a client Service
We have to create Two client Service are name Demo and demo-u2

Create Demo API:

package com.a143mk.SpringBoot.Controller; import org.springframework.web.bind.annotation.RequestMapping; import org.springframework.web.bind.annotation.RestController; @RestController public class BaseController { @RequestMapping("/client1") String first() { return "Welcome To Demo Client MicroService!"; } }
package com.a143mk.SpringBoot; import org.springframework.boot.SpringApplication; import org.springframework.boot.autoconfigure.SpringBootApplication; import org.springframework.cloud.client.discovery.EnableDiscoveryClient; @EnableDiscoveryClient @SpringBootApplication public class DemoApplication { public static void main(String[] args) { SpringApplication.run(DemoApplication.class, args); } }
<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>2.0.6.RELEASE</version> <relativePath/> <!-- lookup parent from repository --> </parent> <groupId>com.a143mk</groupId> <artifactId>SpringBoot</artifactId> <version>0.0.1-SNAPSHOT</version> <packaging>jar</packaging> <name>ureka-server</name> <description>Microservices With Eureka Configuration</description> <properties> <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding> <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding> <java.version>1.8</java.version> <!-- This is import cloud version if you have any one. --> <spring-cloud.version>Finchley.SR1</spring-cloud.version> </properties> <dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-actuator</artifactId> </dependency> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-data-rest</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-devtools</artifactId> <scope>runtime</scope> <optional>true</optional> </dependency> <dependency> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> <optional>true</optional> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-data-jpa</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> </dependency> </dependencies> <dependencyManagement> <dependencies> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-dependencies</artifactId> <version>${spring-cloud.version}</version> <type>pom</type> <scope>import</scope> </dependency> </dependencies> </dependencyManagement> <build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> </plugin> </plugins> </build> </project>

Spring Boot:
Spring Boot is an opinionated Java framework for building microservices based on the Spring dependency injection framework. Spring Boot allows developers to create microservices through reduced boilerplate, configuration, and developer friction. This is a similar approach to the two other frameworks we’ll look at.

Spring Boot does this by:

Dependencies:
Spring was used in large enterprise applications that typically leveraged lots of different technology to do the heavy lifting: JDBC databases, message queues, file systems, application-level caching, etc. A developer would have to stop what she’s doing, switch cognitive contexts, figure out what dependencies belonged to which piece of functionality (“Oh, I need the JPA dependencies!”) and spend lots of time sorting out versioning mismatches or issues that would arise when trying to use these various pieces together. Spring Boot offers a large collection of curated sets of libraries for adding these pieces of functionality.

These starter modules allow you to add things like:

• JPA persistence.
• NoSQL databases like MongoDB, OracleDB, and Couchbase.
• Redis caching.
• Tomcat/Jetty/Undertow servlet engine
• JTA transactions.
